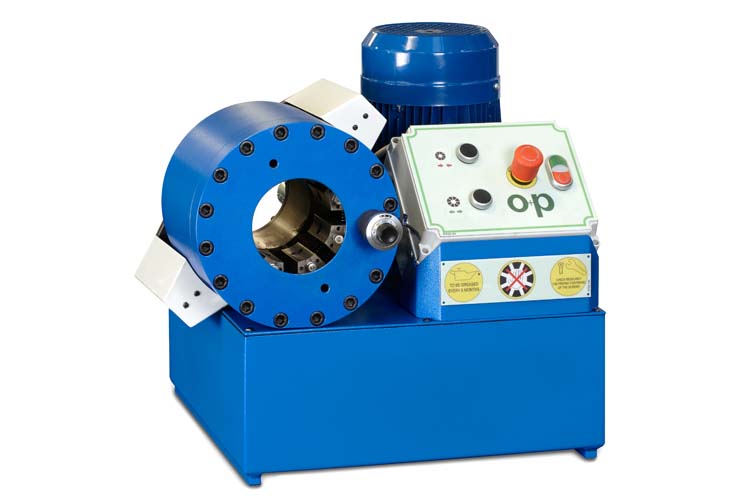

H83EL Electric swaging machine

H83EL Electric Swaging Machine

Capacity:  1" 6 Wire. (1.1/4" 4 Wire)
Tubomatic H83/E EL is ideal for crimping hydraulic hoses up to 1" six wire and up to 1"1/2 four wire.
- ideal for crimping any type of fitting.

Technical Info

  • Capacity: Up to 1" 6 Wire Hose / 1.1/4" 4 Wire
  • Operation: Electric

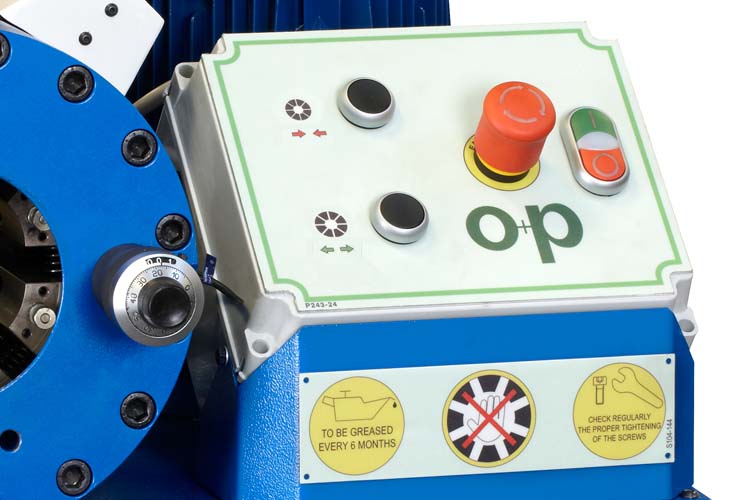

  • Control: Vernier Micrometer/LED
  • Crimping Range: 10 - 64mm
  • Die Set: H83
  • Max Opening: Die Set +42mm
  • Crimping Force: 1350kN
  • Dimensions: 590x590x540mm
  • Weight: 120kg

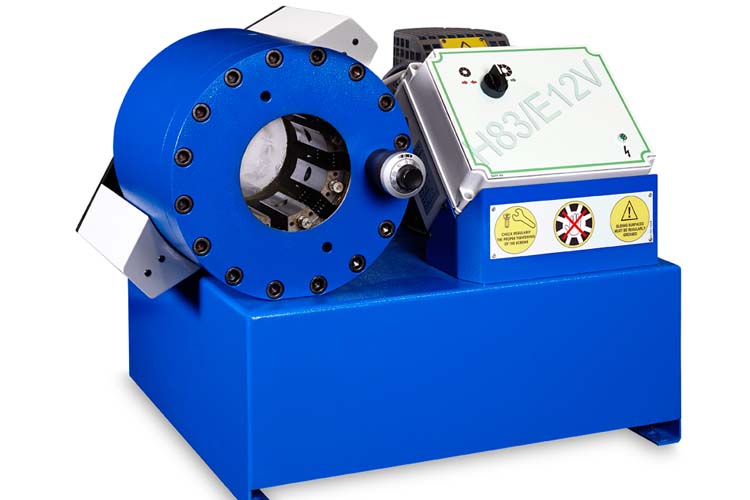

12V Machine data sheet Buy Online
