H64PM Manual swaging machine

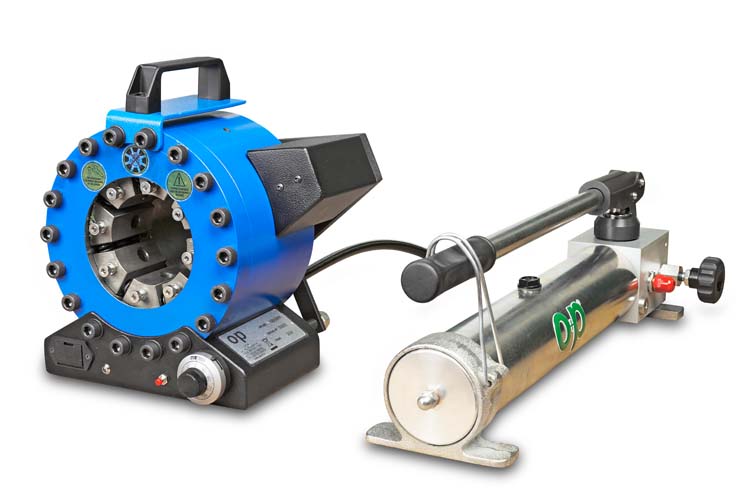

H64PM Manual Swaging Machine

Capacity: 1" 4 Wire. (1.1/4" 2 Wire)
Lightweight, robust and simple to operate.
Ideal for swaging a wide range of hose up to 1" 4 wire.

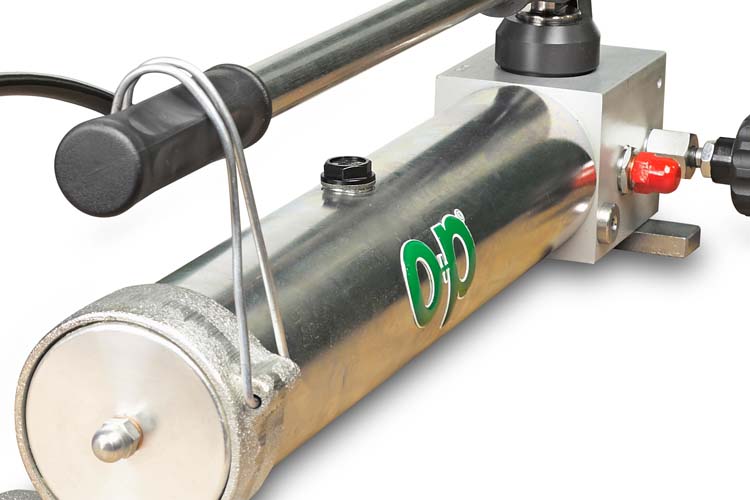

- manual pump separated from the machine;
- electric limit switch indicating when the crimping diameter is reached.

Technical Info

  • Capacity: Up to 1" 4 Wire Hose / 1.1/4" 2 Wire
  • Operation: Manual Hand pump

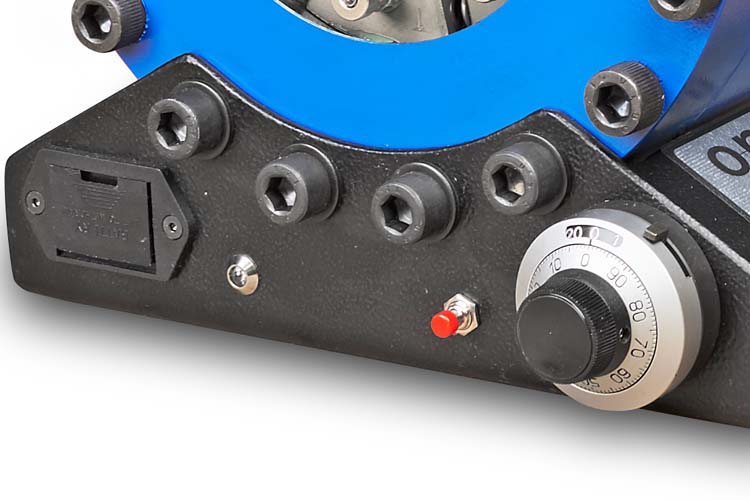

  • Control: Vernier Micrometer/LED
  • Crimping Range: 10 - 64mm

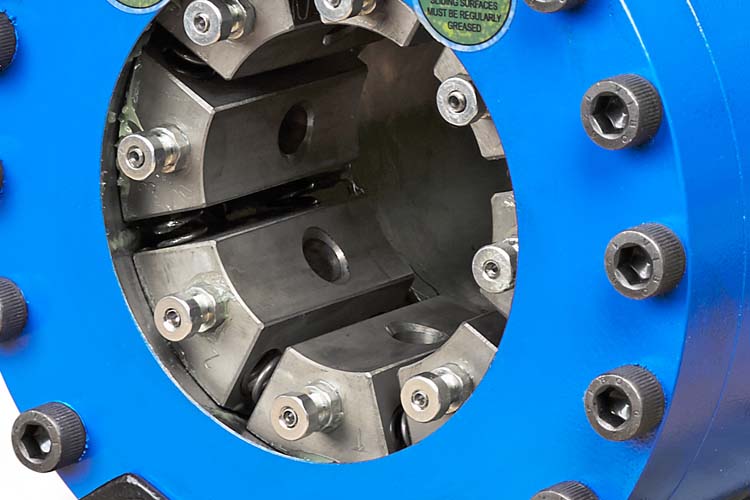

  • Die Set: H64
  • Max Opening: Die Set +15mm
  • Crimping Force: 1200kN
  • Dimensions: 306x260x310mm
  • Weight: 43kg
Download Machine Data Sheet
