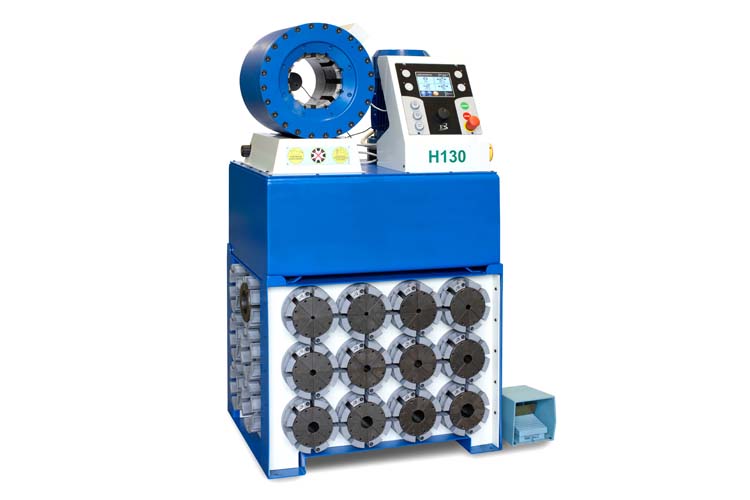

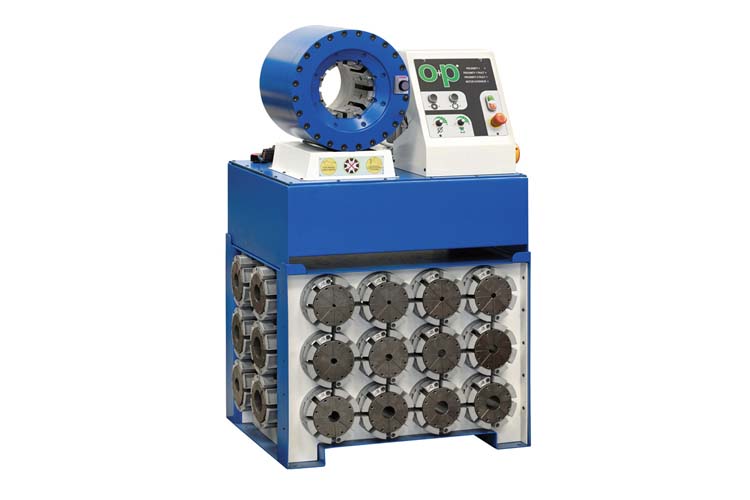

H130ES Electric swaging machine

H130ES Electric Swaging Machine

Capacity:  1.1/4" 6 Wire. (2" 4 Wire)
Tubomatic H130 EL is ideal for crimping hydraulic hoses up to 1" 1/4 six wire and up to 2" four wire. - ideal for crimping any type of fitting;

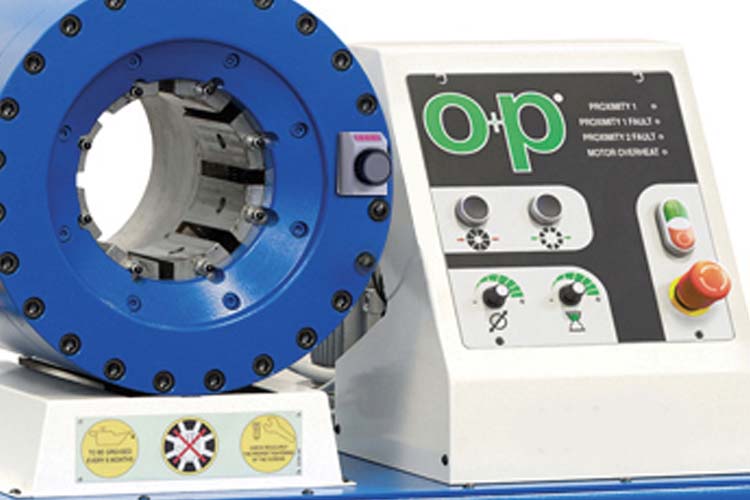

- new electronic device for managing the new electro-mechanical panel;
- warning LED for possible anomalies in the system;
- settable re-opening time after crimping;
- settable crimping time.

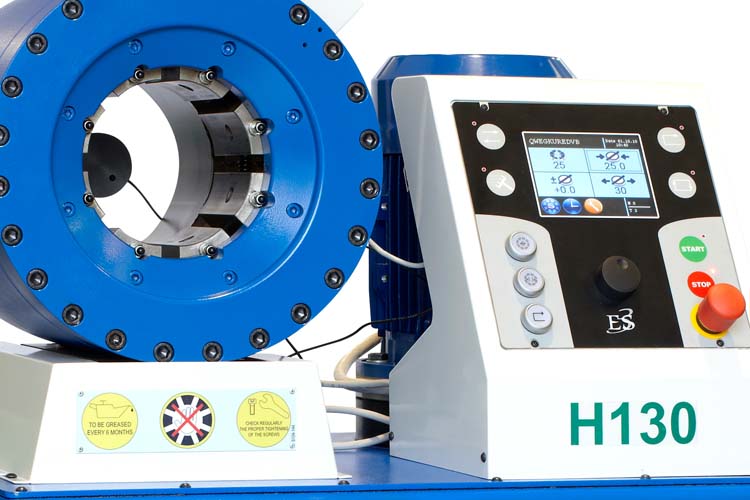

- ES3 Siemens PLC control with 5,7'' color touch-screen display;
- back limit switch.

Technical Info

  • Capacity: Up to 1.1/4" 6 Wire Hose / 2" 4 Wire
  • Operation: 3 phase Electric
  • Control: Vernier Micrometer/LED
  • Crimping Range: 10 - 130mm
  • Die Set: H130
  • Max Opening: Die Set +35mm
  • Crimps per Hour: 780
  • Crimping Force: 1900kN
  • Dimensions: 760x690x730mm
  • Weight: 295kg
Download machine data sheet
