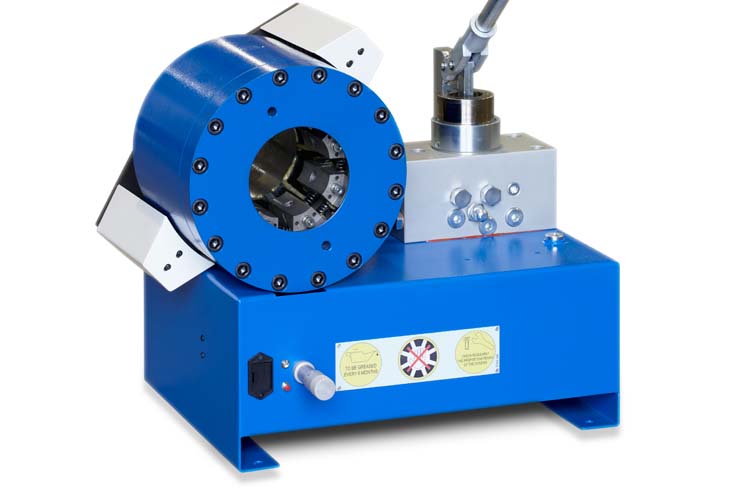

H83PM Manual swaging machine

H83PM Manual Swaging Machine

Capacity: 1" 4 Wire. (1.1/4" 2 Wire)
Ideal for crimping hydraulic hoses up to 1" six wire and up to 1"1/2 four wire.
This versatile machine can be used for several applications. It is the perfect equipment for hydraulic hose manufacturers and assemblers.
- ideal for crimping any type of fitting;
- manual pump.

Technical Info

  • Capacity: Up to 1" 4 Wire Hose / 1.1/4" 2 Wire

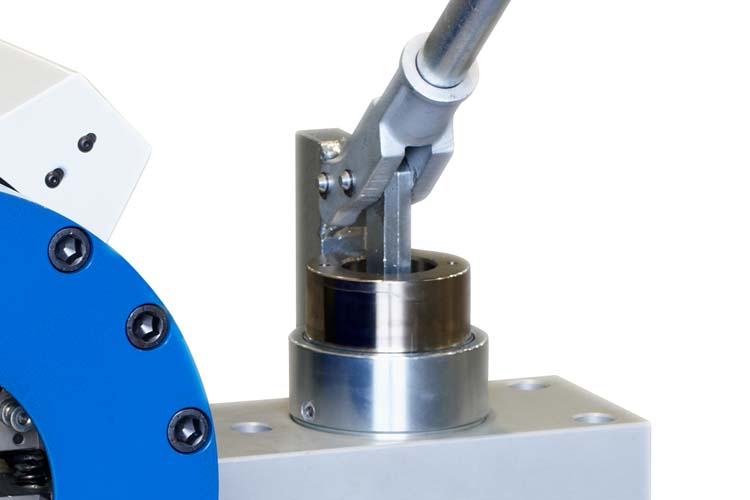

  • Operation: Manual Hand pump

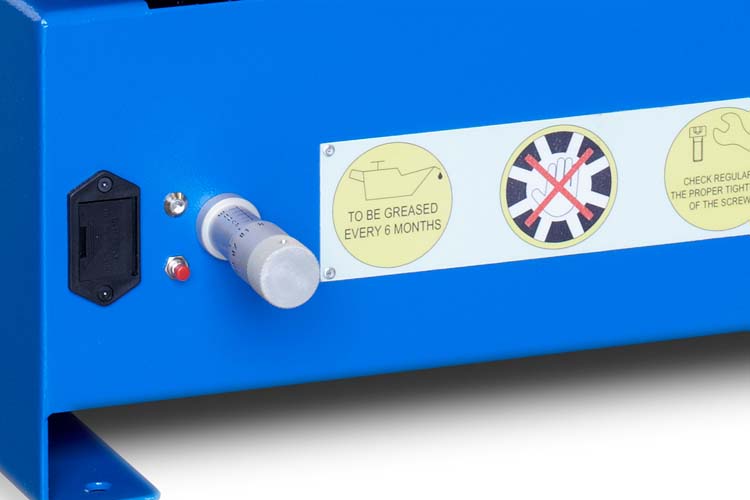

  • Control: Vernier Micrometer/LED
  • Crimping Range: 10 - 64mm
  • Die Set: H83
  • Max Opening: Die Set +42mm
  • Crimping Force: 1350kN
  • Dimensions: 600x445x475mm
  • Weight: 85kg
Download Machine Data Sheet
